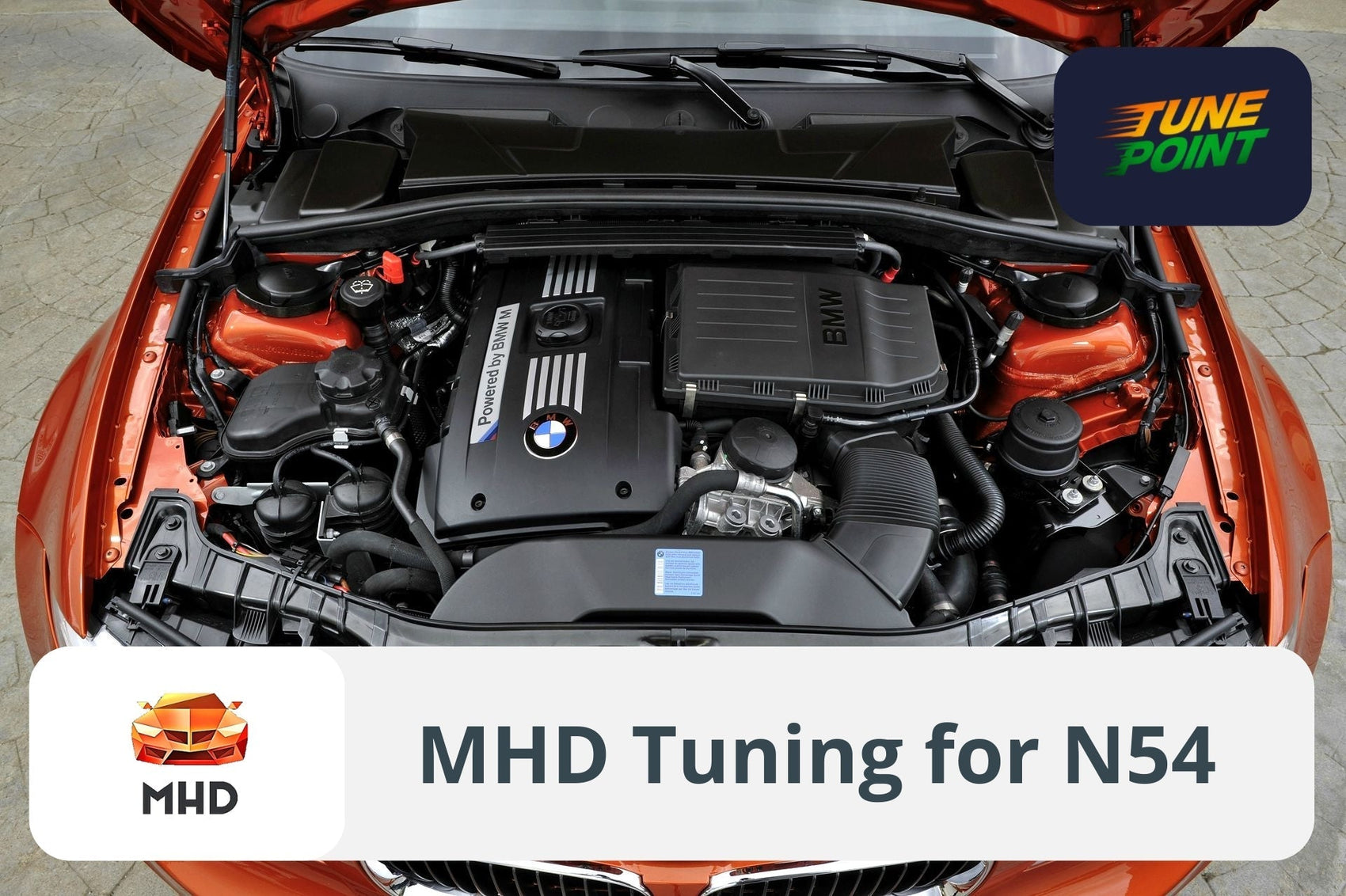

The BMW N54 remains one of the most rewarding turbocharged BMW engines to tune. Found in models such as the E90/E92/E93 335i, E82 135i, E60 535i, E89 Z4 35i/35is and 1M Coupé, it responds extremely well to ECU calibration, better cooling, stronger fuel support and careful monitoring. For European owners, the goal should not simply be “maximum boost”. A good setup balances power, fuel quality, temperature control, reliability, legality and the way the car is actually used.
This guide focuses on MHD-based N54 setups, with special attention to FlexFuel hardware available from TunePoint Europe, and uses official MHD information plus installation context from Bimmer ECU Solutions. MHD states that its N54 Super Tuning License gives access to flash tuning, monitoring, OTS maps, FlexFuel and MBoost functionality in one package, with initial flashing taking around 15 minutes and later map changes taking around 60 seconds when using the recommended wireless adapter.
Why the N54 is still popular for tuning
The N54 is a twin-turbo inline-six with strong factory hardware, direct injection and large aftermarket support. In stock form, MHD lists N54 output in the 306–340 hp range depending on model and factory calibration. With suitable software and hardware, the same engine can move into much higher performance levels without changing the engine’s basic architecture.
The reason the platform is so popular is simple: the gains are noticeable. A basic flash can transform throttle response and mid-range torque, while a more complete setup with downpipes, intercooler, fresh ignition components and fuel support can make the car feel dramatically stronger. However, because many European N54 cars are now more than ten years old, tuning should begin with maintenance, diagnostics and logging rather than with the most aggressive map available.
Start with health checks before flashing
Before adding power, the car should be mechanically ready. On an N54, that means checking for boost leaks, weak coils, worn spark plugs, vacuum issues, injector problems, high-pressure fuel pump behaviour, low-pressure fuel delivery, oil leaks and cooling system condition. A tune will not fix a tired car. It usually makes weak points show up faster.
MHD’s monitoring functionality is valuable here because it allows the driver to watch and log key data such as boost, boost target, lambda, intake air temperature, ignition timing, timing corrections, coolant temperature, oil temperature, HPFP, throttle position, wastegate duty cycle and more.
For a European daily driver, logs are especially important because fuel quality, climate and driving style vary widely. A car running 98 RON in Germany may behave differently from one using mixed-quality fuel in another market. Logging shows whether the setup is actually safe under load.
Understanding MHD stages for the N54
MHD offers several off-the-shelf map levels for the N54. Stage 1 is intended for stock cars and is listed up to 360 hp and 520 Nm. Stage 1+ is listed up to 390 hp and 600 Nm, with an upgraded front-mount intercooler recommended. Stage 2 is listed up to 380 hp and 560 Nm, with high-flow downpipes recommended. Stage 2+ is listed up to 420 hp and 650 Nm, with high-flow downpipes and an upgraded intercooler recommended. Ethanol mix maps are listed up to 440 hp and 670 Nm, with supporting fuel hardware recommended for stronger blends.
For most owners, Stage 1 or Stage 1+ is the smartest entry point. It gives a clear performance increase while keeping the hardware list reasonable. Stage 2 and Stage 2+ require more attention to exhaust flow, intake temperatures and mechanical condition. Ethanol-based setups can be very effective, but they require the correct hardware, software and fuel strategy.
Why FlexFuel matters on tuned N54 cars
Ethanol fuel can offer strong knock resistance, which is why many tuned turbo BMWs respond well to ethanol blends. The problem is consistency. Ethanol content can vary by station and by season. If the ECU assumes one blend but the tank contains another, the engine may run incorrectly.
That is where FlexFuel becomes useful. TunePoint’s MHD FlexFuel Kit for Open Wire N54 / N55e / manual-transmission applications uses an ethanol content analyser. The ECA reads information from the ethanol sensor, converts it to CAN format and sends it to the DME. TunePoint describes FlexFuel as a feature that adjusts the tune on the fly according to ethanol content information received from the ECA.
Bimmer ECU Solutions also published an installation video for the MHD CAN FlexFuel Kit on the N54 engine using the open-wire option, which is directly relevant for owners planning this type of setup.
The key point is safety. TunePoint clearly warns that without the correct tune for the ethanol blend used, the engine may not work correctly and may be damaged.
Product focus: MHD FlexFuel Kit – Open Wire – N54 or N55e or Any MT
For N54 owners in Europe, the most relevant TunePoint product is the MHD FlexFuel Kit – Open Wire – N54 or N55e or Any MT. TunePoint lists it at €459 including VAT and states that it is designed for N54 cars, N55 E-series cars and manual-transmission applications. The kit includes an ethanol analyser module, ethanol sensor, custom harness with three-wire posi-tap connectors, PR 360 fittings from Precision Raceworks, eye protection and hand protection.
This is important because many N54 builds are not just about a single fuel type. A FlexFuel setup lets the car adapt to the actual ethanol content in the tank when correctly configured. That makes it more practical for owners who may switch between pump fuel and ethanol blends depending on availability.
For a European audience, that flexibility matters. E85 availability is not equal across Europe. Some countries have easy access, while others do not. FlexFuel helps make the car less dependent on a perfectly fixed blend, but it still requires proper setup and responsible logging.
MHD Super License and software requirements
The MHD Super Tuning License for N54 is the software foundation for a complete MHD setup. According to MHD, it includes the flasher license, monitor license, all OTS maps, FlexFuel and MBoost software. It supports iOS 10.2 and higher and Android 6 and higher, with the MHD Universal WiFi Adapter recommended for both iOS and Android.
Check here: https://mhdtuning.com/products/mhd-super-license-for-n54
The same MHD page lists supported cars including 135i, 335i, 535i from 2006–2010, 335is from 2011–2013, Z4 35i/is from 2009–2015, 1M from 2011–2012 and X6 35i from 2008–2010. It also states that xDrive is supported.
TunePoint Europe lists the MHD Universal WIFI Adapter OBDII Wireless Flash among its popular products, priced at €88 including VAT at the time checked.
Suggested upgrade path for an N54 in Europe
Step 1: Maintenance and diagnostics
Start with spark plugs, coils, vacuum lines, boost leak testing, fresh oil, cooling system inspection and fuel pressure checks. Do not flash a higher-power map onto a car with unresolved misfires or fuel pressure problems.
Step 2: MHD adapter and software
Use the MHD app, compatible license and wireless adapter. Flash conservatively first, then log. Avoid jumping directly to aggressive ethanol or high-boost maps without confirming the car’s health.
Step 3: Stage 1 or Stage 1+
Stage 1 is suitable for a mostly stock car. Stage 1+ becomes more attractive once intake temperatures are controlled with a stronger intercooler. MHD lists Stage 1+ as requiring an upgraded FMIC recommendation, not just software.
Step 4: Stage 2 or Stage 2+
Stage 2 requires better exhaust flow, typically high-flow downpipes. Stage 2+ adds the intercooler recommendation. On European cars, road legality must be checked carefully, especially where emissions testing and inspection rules are strict.
Step 5: FlexFuel
Once the car is healthy and the owner wants ethanol capability, the TunePoint MHD FlexFuel Kit becomes relevant. This is not just a “power part”; it is a control and safety part that gives the ECU real ethanol-content data.
Legal and road-use warning for Europe
TunePoint states that unless explicitly stated otherwise, products sold by TunePoint EU are designated race only and for competition or off-road use limited to formally sanctioned racing. It also states that the customer is responsible for checking applicable federal, state, local and environmental laws before ordering and installing a product.
For Europe, this matters. A setup that is acceptable for track use may not be legal for public roads. Emissions equipment, catalytic converters, noise limits, insurance declarations and inspection requirements vary by country. Always check local rules before installing performance hardware or flashing software that changes emissions-related behaviour.
Common N54 tuning mistakes
The first mistake is tuning before maintenance. Old plugs, tired coils or small boost leaks can turn a simple flash into a frustrating misfire diagnosis.
The second mistake is choosing a map based on ambition rather than hardware. If a map recommends an upgraded intercooler or downpipes, treat that recommendation seriously.
The third mistake is ignoring logs. A car can feel fast while running excessive timing corrections, high intake temperatures or unstable fuel pressure.
The fourth mistake is using ethanol without the right tune and sensor setup. TunePoint specifically warns that the engine may not work correctly and may be damaged without the correct tune for the ethanol blend.
The fifth mistake is forgetting legality. European inspections can be strict, and owners should understand what is permitted in their country.
Final recommendation
For most European BMW N54 owners, the best route is a staged, data-led build:
Begin with maintenance. Add MHD software and monitoring. Flash a conservative map. Log the car. Upgrade cooling and exhaust only when the map requires it. Add FlexFuel when ethanol use becomes part of the plan, not as an afterthought.
The N54 can deliver excellent performance, but the safest cars are the ones tuned with discipline. With MHD software, proper monitoring and a correctly installed FlexFuel system from TunePoint Europe, the platform can remain fast, flexible and enjoyable without relying on guesswork.
