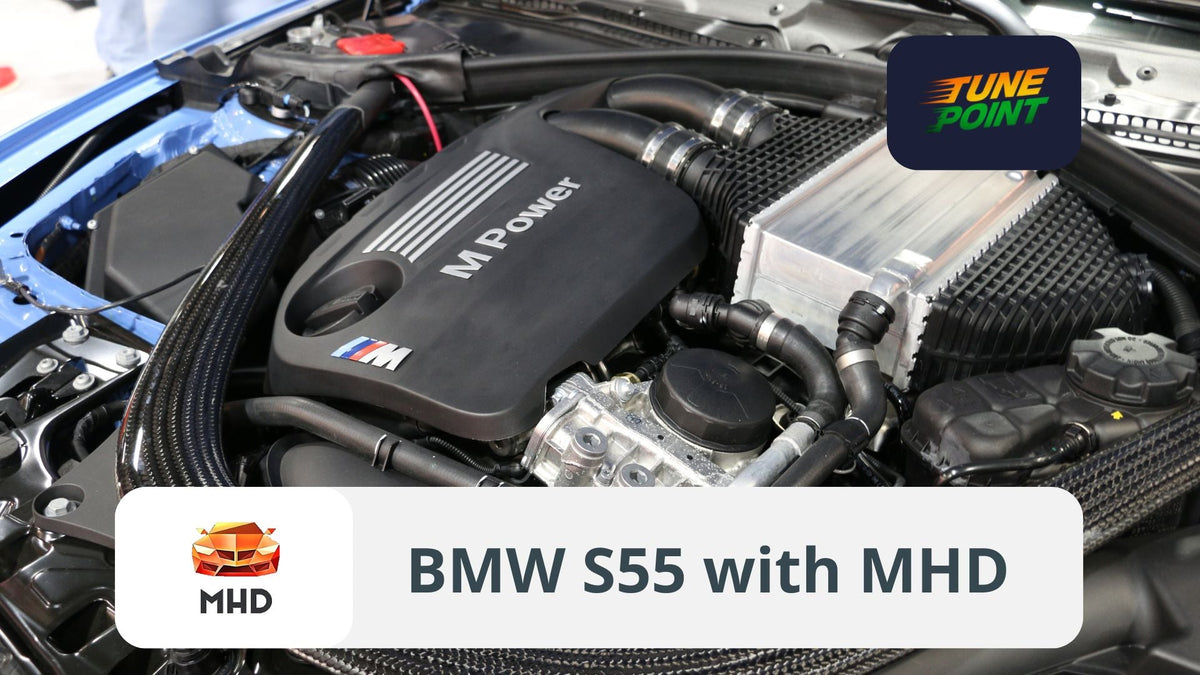

Unlocking the Full Potential of the BMW S55 with MHD

The BMW S55 engine was developed as a high-performance successor to the N55 and quickly became the foundation of several modern BMW M models. Featuring a closed-deck aluminum block, forged crankshaft, lightweight connecting rods, twin mono-scroll turbochargers, and an advanced Bosch engine management system, the S55 offers substantial performance potential beyond its factory calibration.

Software optimization is one of the most effective methods of increasing engine output because the DME controls boost pressure, ignition timing, torque requests, fuel delivery, throttle response, and numerous safety strategies. MHD S55 provides access to these calibration parameters through a user-friendly platform that supports ECU flashing, diagnostics, live monitoring, and datalogging from a compatible mobile device.

Unlike standalone piggyback controllers, BMW MHD S55 communicates directly with the factory DME, allowing calibration changes while retaining the engine's built-in protection systems.

Supported BMW Models

The current software supports all major production vehicles equipped with the S55 engine.

Compatibility should always be verified before flashing, as DME software revisions may require different procedures depending on the production year.

How MHD Optimizes the S55 ECU

Factory BMW calibrations are designed to satisfy emissions regulations, varying fuel quality, and long-term durability across global markets. As a result, engine operating parameters remain intentionally conservative.

A properly developed MHD S55 tune modifies multiple calibration tables simultaneously rather than increasing turbocharger boost alone. Modern Bosch DMEs continuously calculate engine load, requested torque, wastegate position, fuel injection duration, ignition timing, knock activity, and intake temperatures. These systems work together, meaning that changing a single parameter without recalibrating the others often produces inconsistent results.

Typical adjustments include:

The objective is not simply higher peak horsepower but improved efficiency throughout the entire operating range while maintaining factory protection strategies.

Selecting the Appropriate Tuning Stage

One advantage of MHD S55 tuning is that the software supports vehicles with different levels of modification. Owners can begin with a stock vehicle and continue using the same tuning platform as additional hardware is installed.

MHD S55 Stage 1: required hardware is a completely stock vehicle; recommended fuel is premium pump fuel.

Stage 1+: required hardware includes intake or charge pipe upgrades; recommended fuel is premium pump fuel.

Stage 2: required hardware includes downpipes and an upgraded intercooler; recommended fuel is premium pump fuel.

Custom Tune: required hardware includes hybrid turbos or fuel system upgrades; recommended fuel is pump fuel, ethanol, or race fuel.

Off-The-Shelf maps are suitable for vehicles with standard bolt-on modifications. However, engines equipped with upgraded turbochargers, larger injectors, port injection, or high-pressure fuel pump upgrades should be calibrated individually using a MHD custom tune S55.

Custom calibration allows precise adjustment of boost pressure, ignition timing, fuel delivery, and torque intervention according to the specific hardware configuration.

Recommended Supporting Modifications

Although ECU software delivers significant performance improvements on a stock vehicle, supporting hardware becomes increasingly important as boost pressure rises.

• Performance Intercooler: primary benefit is lower intake air temperatures

• High-Flow Downpipes: primary benefit is reduced exhaust backpressure

• Aluminum Charge Pipes: primary benefit is improved durability under boost

• High-Flow Intake: primary benefit is increased airflow efficiency

• Colder Spark Plugs: primary benefit is stable combustion at higher cylinder pressures

• Performance Exhaust: primary benefit is improved exhaust flow

Many of these upgrades contribute more to thermal stability than absolute horsepower. For example, an upgraded intercooler reduces heat soak during repeated acceleration, allowing the engine to maintain consistent performance over extended driving sessions.

Datalogging and Diagnostic Functions

One of the most valuable features of BMW MHD S55 is comprehensive datalogging. Rather than relying solely on dashboard indicators, owners can monitor critical engine parameters in real time and review recorded data after each drive.

The software can log numerous ECU channels, including:

• Boost pressure

• Ignition timing

• Fuel pressure

• Intake air temperature

• Lambda values

• Knock correction

• Wastegate duty cycle

• Throttle position

Analyzing these values helps identify ignition corrections, fuel supply limitations, boost deviations, or excessive intake temperatures before they develop into more significant mechanical problems.

Flex Fuel and Custom Calibration

Many S55 owners choose to operate on ethanol blends because of their higher octane rating and improved resistance to detonation.

With compatible hardware, MHD S55 flex fuel enables automatic adjustment of ignition timing and fuel delivery according to the measured ethanol content. Instead of installing separate calibrations for pump fuel, E30, or E50, the ECU continuously adapts to the fuel composition present in the tank.

Vehicles equipped with upgraded turbochargers or advanced fuel systems generally benefit from an MHD custom tune S55, where every calibration table is optimized specifically for the installed hardware and intended operating conditions.

See also сollection of parts for tuning the S55 engine: https://tunepoint.eu/collections/bmw-s55

Best Practices Before Flashing

Before installing any performance calibration, the engine should be inspected to ensure that it is operating correctly.

The following maintenance items are recommended:

Ignoring existing mechanical issues may reduce reliability regardless of the quality of the ECU calibration.

Conclusion

The S55 engine combines robust mechanical design with one of BMW's most advanced engine management systems, making it highly responsive to software optimization. MHD S55 provides a complete tuning environment that includes ECU flashing, diagnostics, live monitoring, datalogging, and support for both Off-The-Shelf and custom calibrations.

Whether the vehicle remains close to factory specification or evolves into a high-performance build with upgraded turbochargers and fuel system components, MHD S55 tuning offers a scalable solution that supports every stage of development while maintaining the safety strategies integrated into the original BMW engine management system.
